넥스포는 Schneider Electric 의 다양한 IED 제품을 통해 전력계통 보호 엔지니어링 솔루션을 제공합니다. Easergy MiCOM과 Vamp는 신뢰성 있는 보호기능과 고급 멀티 기능을 탑재하여 플랜트의 설비들을 안정적으로 보호하고 모니터링함으로써 고객가치 증진에 기여합니다.
IED PRODUCTS
description

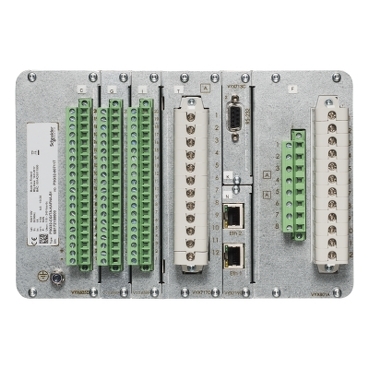

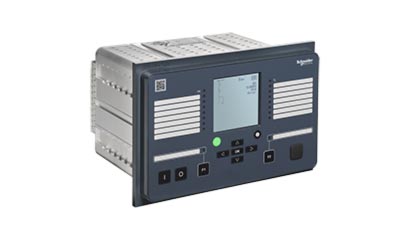

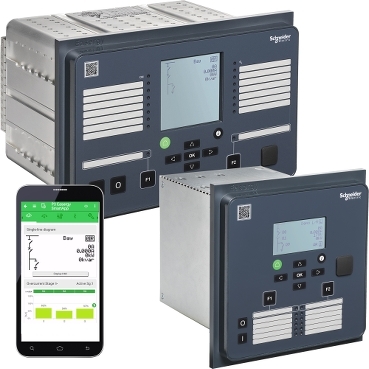

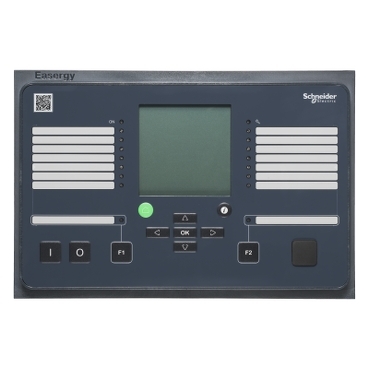

Easergy P3
Compact protection relays for standard applications
Easy-to-use protective relays for Medium Voltage applications with fast delivery, ideal for Panel builders, Contractors and Partners to save time. From overcurrent to advanced protection, with Arc detection and Ethernet communication including IEC 61850
Specification
Feeder
| Description | Specification | |
|---|---|---|
| Type (Model Name) | P3F30 | P3L30 |
| Auxiliary Power Supply | 24-48Vdc / 10-240Vac/dc |
|
| CT Inputs | 4 | |
| VT inputs | 4 | |
| Number of Digital input (max) | 36 | |
| Number of Digital Output (max) | 21 | |
| Number of Analogue input (max) | 4 | |
| Number of Analogue Output (max) | 4 | |
| Number of RTDs (max) | 12 | |
| Protection Elements | Distance (21)* Fault locator (21FL) Synchro-check (25) Directional active underpower (32) Temperature monitoring (38/49T) Cur. unbalance, broken conductor (46BC) Thermal overload (49) Phase overcurrent (50/51) Earth fault overcurrent (50N/51N) Circuit breaker failure (50BF) Capacitor bank unbalance (51C) Voltage dependant overcurrent (51V) Over / Under voltage (59/27) Capacitor overvoltage (59C) Neutral voltage displacement (59N) Restricted earth fault (64) Directional phase overcurrent (67) Directional earth-fault o/c (67N) Transient intermittent (67NI) Magnetizing inrush detection (68F2) Fifth harmonic detection (68H5) Auto-reclose (79) Under / Over frequency (81) Rate of change of frequency (81R) Line differential (87L)* Current transformer supervision / VT supervision (CTS/VTS) |
|
| Communication Protocol | IEC60870-5-103, DNP3.0, Modbus, IEC61850, Profibus DP, SPAbus | |
Generator
| Description | Specification | |
|---|---|---|
| Description | Specification | |
| Type (Model Name) | P3G30 | P3G32 |
| Auxiliary Power Supply | 24-48Vdc / 10-240Vac/dc |
|
| CT Inputs | 4 | 9 |
| VT inputs | 4 | 4 |
| Number of Digital input (max) | 36 | 16 |
| Number of Digital Output (max) | 21 | 13 |
| Number of Analogue input (max) | 4 | |
| Number of Analogue Output (max) | 4 | |
| Number of RTDs (max) | 12 | |
| Protection Elements | Under-impedance (21G) Overfluxing (24) Synchro-check (25) Positive sequence undervoltage (27P) Stator earth-fault detection (27TN/64G) Directional active underpower (32) Temperature monitoring (38/49T) Loss of field (40) Under-reactance (21/40) Negative sequence overcurrent (motor, generator) (46) Thermal overload (49) Phase overcurrent (50/51) Earth fault overcurrent (50N/51N) Circuit breaker failure (50BF) Capacitor bank unbalance (51C) Voltage dependant overcurrent (51V) Over / Under voltage (59/27) Neutral voltage displacement (59N) Restricted earth fault (64) Stator earth fault (64S) Directional phase overcurrent (67) Directional earth-fault o/c (67N) Magnetizing inrush detection (68F2) Fifth harmonic detection (68H5) Pole slip (78PS) Under / Over frequency (81) Rate of change of frequency (81R) Machine differential (87M)* Current transformer supervision / VT supervision (CTS/VTS) |
|
| Communication Protocol | IEC60870-5-103, DNP3.0, Modbus, IEC61850, Profibus DP, SPAbus | |
Motor
| Description | Specification | |
|---|---|---|
| Type (Model Name) | P3M30 | P3M32 |
| Auxiliary Power Supply | 24-48Vdc / 10-240Vac/dc |
|
| CT Inputs | 4 | 9 |
| VT inputs | 4 | 4 |
| Number of Digital input (max) | 36 | 16 |
| Number of Digital Output (max) | 21 | 13 |
| Number of Analogue input (max) | 4 | |
| Number of Analogue Output (max) | 4 | |
| Number of RTDs (max) | 12 | |
| Protection Elements | Synchro-check (25) Directional active underpower (32) Phase undercurrent (37) Temperature monitoring (38/49T) Negative sequence overcurrent (motor, generator) (46) Incorrect phase sequence (47) Excessive start time, locked rotor (48/51LR) Thermal overload (49) Phase overcurrent (50/51) Earth fault overcurrent (50N/51N) Circuit breaker failure (50BF) Capacitor bank unbalance (51C) Over / Under voltage (59/27) Neutral voltage displacement (59N) Restricted earth fault (64) Frequent start inhibition (66) Directional phase overcurrent (67) Directional earth-fault o/c (67N) Magnetizing inrush detection (68F2) Fifth harmonic detection (68H5) Under / Over frequency (81) Rate of change of frequency (81R) Machine differential (87M)* Current transformer supervision / VT supervision (CTS/VTS) |
|
| Communication Protocol | IEC60870-5-103, DNP3.0, Modbus, IEC61850, Profibus DP, SPAbus | |
Transformer
| Description | Specification | |
|---|---|---|
| Type (Model Name) | P3T32 | |
| Auxiliary Power Supply | 24-48Vdc / 10-240Vac/dc |
|
| CT Inputs | 9 | |
| VT inputs | 4 | |
| Number of Digital input (max) | 16 | |
| Number of Digital Output (max) | 13 | |
| Number of Analogue input (max) | 4 | |
| Number of Analogue Output (max) | 4 | |
| Number of RTDs (max) | 12 | |
| Protection Elements | Overfluxing (24) Synchro-check (25) Directional active underpower (32) Temperature monitoring (38/49T) Negative sequence overcurrent (motor, generator) (46) Thermal overload (49) Phase overcurrent (50/51) Earth fault overcurrent (50N/51N) Circuit breaker failure (50BF) Capacitor bank unbalance (51C) Over / Under voltage (59/27) Neutral voltage displacement (59N) Restricted earth fault (64) Directional phase overcurrent (67) Directional earth-fault o/c (67N) Magnetizing inrush detection (68F2) Fifth harmonic detection (68H5) Under / Over frequency (81) Rate of change of frequency (81R) Transformer differential (87T) Current transformer supervision / VT supervision (CTS/VTS) |
|
| Communication Protocol | IEC60870-5-103, DNP3.0, Modbus, IEC61850, Profibus DP, SPAbus | |
