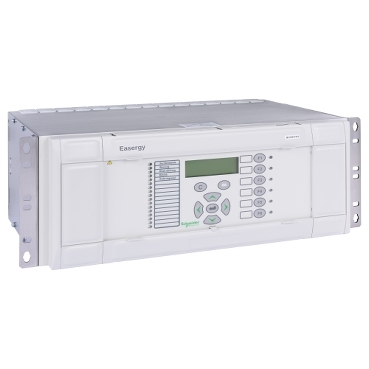

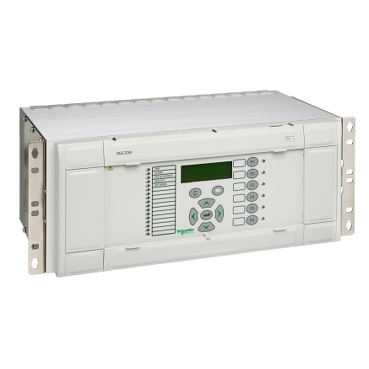

MiCOM P532
Line Differential Protection and Bay Control Device
MiCOM P532 provides a two ended line differential protection function with all of the necessary protection communication interfaces.

저렴한 소형 선로 차동 보호
MiCOM P53x 레인지는 필요한 보호 통신 인터페이스 모두를 가진 양단 선로 차동 보호 기능을 제공합니다.

Specification

항목 사양
  P532
제어전원 (Power Supply) 24-60Vdc
60-250Vdc/100-230Vac
CT Inputs 4
VT inputs 4 or 5
Number of Digital input (max) 46
Number of Digital Output (max) 30
Number of Analog Input (optional) 1
Number of Analog Output (optional) 2
Number of RTDs (optional) 1
보호기능 Check synchronising (25)
Negative sequence overcurrent (46)
Thermal overload (49)
Motor Protection (51LR)*
Earth fault (50/51N)
Phase overcurrent (50/51P)
Circuit breaker failure (50BF)
Over / under voltage (59/27)
Wattmetric earth fault (64W)
Earth fault directional (67N)
Transient ground fault detection (67N)
Phase directional (67P)
Auto-reclose (79)
Over / under frequency (81)
Line differential (terminal) (87L)
통신 프로토콜 (Communication Protocol) IEC60870-5-103, IEC 60870-5-101, DNP3.0, Modbus and Courier, IEC61850
Image Description
Image Description

Download

File Download
P532 User Manual 다운로드
Product Catalog 다운로드
