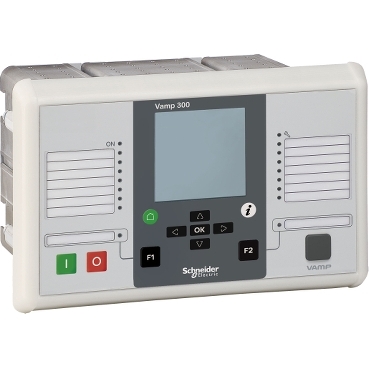

VAMP 300 Series
Protection and Control managers for MV power systems
The VAMP 300 series offers a comprehensive family of protection and control devices with versatile measurement functions for the management of feeders, motors, generators and transformers.

전력 시스템을 위한 효율적인 보호 및 제어 관리자
VAMP 300 시리즈는 피더 및 모터 관리를 위한 복합 계측 기능을 갖춘 포괄적인 보호 및 제어 장치 제품군입니다.

VAMP 300F: Applications where reliable control and protection is needed for feeders including overhead lines, cables and busbars in power system distribution substations, power plants, industrial power systems, and marine and offshore installations.

VAMP 300M: Applications where advanced control and protection is needed for motors and motor feeding cables. Optional RTD interface units enable use of temperature measurements from motor bearings and windings for accurate thermal protection, mimic display viewing and transfer of temperature information to the automation system.

VAMP 300G: Applications where differential protection of generators, protection of generator block transformers or overall generator protection is required. The VAMP 300G is optimal with medium-sized generators up to 150 MW. The external RTD module increases knowledge and accuracy in generator management.

VAMP 300T: Applications with two-winding power transformers where differential, short circuit, thermal overload, earth-fault and voltage protection is required.

VAMP 300F: 전력 배전 변전소, 발전소, 산업 전력 시스템, 마린, 해양시설의 오버헤드 라인, 케이블, 부스바를 비롯한 피더에 안정적인 제어 및 보호가 필요한 애플리케이션

VAMP 300M: 모터 및 모터 공급 케이블에 고급 제어 및 보호가 필요한 애플리케이션 RTD 인터페이스 장치 옵션을 사용하면 정확한 열적 보호, 모방(Mimic) 디스플레이 화면 및 온도 정보 전송의 자동화를 위해 사용 중인 모터 베어링 및 와인딩에서 온도를 측정할 수 있습니다.

Specification

항목 사양
  VAMP 300F VAMP 300M
제어전원 (Power Supply) 18-36Vdc
40-265Vac/dc
CT Inputs 4
VT inputs 4
Number of Digital input (max) 31
Number of Digital Output (max) 18
Analogue input Option
Analogue Output
RTD input
보호기능 Phase overcurrent (50/51)
Directional phase overcurrent (67)
SOTF Switch on to fault (50 HS)
Line differential (87L)
Distance (21)
Cold load pick-up
Thermal overload (49)
Earth fault (50N/51N)
Directional earth fault (67N)
Intermittent earth fault (67N-IEF)
Undervoltage (27)
Overvoltage (59)
Neutral voltage (59N)
Phase undercurrent (37)
Unbalance (46)
Phase sequence (47)
Directional power (32)
Excessive starts (48)
Successive starts (66)
Locked rotor (51LR) , by application
Stall protection 48
Magnetising inrush (68F2)
Over excitation 68F5
Frequency (81H/81L)
Synchrocheck (25)
Rate of change of frequency (81R)
Capacitor bank unbalance (46C)
Capacitor overvoltage
Recloser (79)
Breaker failure (50BF)
Current transformer supervision / VT suporvison (CTS/VTS)
통신 프로토콜 (Communication Protocol) IEC60870-5-101, IEC60870-5-103, DNP3.0, Modbus, SPA-bus, Ethernet IP, Profibus DP, IEC61850
