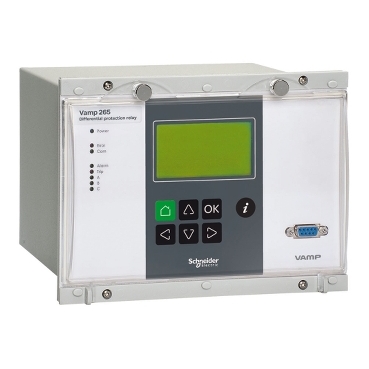

VAMP 200 Series
Protection and Control Devices for MV Power Systems
VAMP 200 series offers a comprehensive family of protection and control devices with complex measurement functions for the management of feeders, motors and capacitor banks.

VAMP 210: Small and medium sized generators including solidly as well as high or low resistance grounded systems.

VAMP 230, 255 and 257: Applications where reliable control and protection is needed on feeders and motors including overhead line feeders, cable feeders, motor feeders, capacitor banks, reactors and busbars in power system distribution substations, power plants, industrial power systems, marine and offshore installations.

VAMP 259: Complete distance protection which incorporates line differential functions required for the protection of sub transmission cables and overhead lines.

VAMP 265: Utility and industrial power generation differential applications including generators, transformers and motors.

VAMP 265M: Complete differential protection dedicated to large synchronous and asynchronous motors

Specification

Description Specification
Type (Model Name) VAMP 265M
Auxiliary Power Supply 18-36Vdc
40-265Vac/dc
CT Inputs 8
VT inputs 0
Number of Digital input (max) 6
Number of Digital Output (max) 7
Analogue input Option
Analogue Output
RTD input
Protection Elements Undercurrent protection (37)
Current unbalance protection (46)
Phase reversal/incorrect phase sequence protection (47)
Stall protection (48)
Thermal overload (49)
Earth fault protection (50N/51N)
Overcurrent protection (50/51)
Circuit breaker failure (50BF)
Frequent start protection N> (66)
Magnetising inrush (68F2)
Transformer overexcitation (68F5)
Differential overcurrent protection (87)
Current transformer supervision (CTS)
Communication Protocol IEC60870-5-101, IEC60870-5-103, DNP3.0, Modbus, SPA-bus, Ethernet IP, Profibus DP, IEC61850
