넥스포는 Schneider Electric 의 다양한 IED 제품을 통해 전력계통 보호 엔지니어링 솔루션을 제공합니다. Easergy MiCOM과 Vamp는 신뢰성 있는 보호기능과 고급 멀티 기능을 탑재하여 플랜트의 설비들을 안정적으로 보호하고 모니터링함으로써 고객가치 증진에 기여합니다.
IED PRODUCTS
description

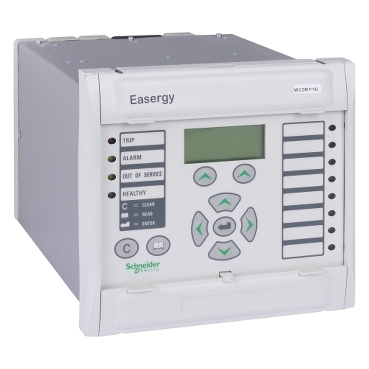

MiCOM P24X
Rotating Machine and Motor Protection Relays
Easergy MiCOM P24x relays offer advanced protection, control and monitoring of motors and rotating machines.
MiCOM P241 : Motor management relay
MiCOM P242 : Motor management with extended I/O (Digital Inputs and Digital Outputs)
MiCOM P243 : Motor management, integrated Differential protection with extended I/O and enhanced operator control functions
Specification
| Description | Specification | ||
|---|---|---|---|
| Type (Model Name) | P241 | P242 | P243 |
| Auxiliary Power Supply | 24-32Vdc 48-110Vdc/40-100Vac 110-250Vdc/100-240Vac |
||
| CT Inputs | 4 | 4 | 7 |
| VT inputs | 3 | 3 | 3 |
| Number of Digital input (max) | 12 | 16 | 16 |
| Number of Digital Output (max) | 11 | 16 | 16 |
| Number of Analog Input (optional) | 4 | ||
| Number of Analog Output (optional) | 4 | ||
| Number of RTDs (optional) | 10 | ||
| Protection Elements | Check synchronising (25)* Directional power (32) Undercurret (37) Negative sequence overcurrent (46) Broken conductor (46BC) Negative sequence over voltage (47) Thermal overload (49) Ground fault (50N/51N) 3 Phase overcurrent (50/51P) Circuit breaker failure (50BF) Voltage controlled overcurrent(51V) Over / Under voltage (59/27) Residual over voltage (59N) Restricted earth fault (64) Ground fault directional (67N) Auto-reclose (79) Under / Over frequency (81) Rate of change of frequency (81R) Current transformer supervision / VT supervision (CTS/VTS) |
||
| Communication Protocol | IEC60870-5-103, DNP3.0, Modbus, K-bus/Courier, IEC61850 | ||
