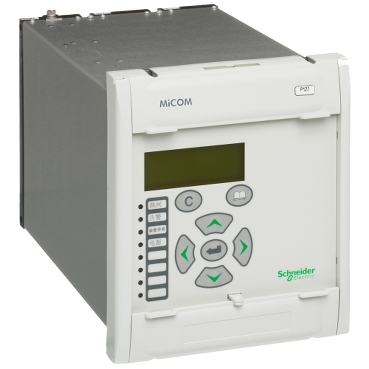

MiCOM P22X
Motor and Overcurrent Protection Relays
MiCOM P22x range of protection relays is designed for motor protection applications and includes a complete set of protection functions.

Specification

Description Specification
Type (Model Name) P220 P225
Auxiliary Power Supply 48-250Vdc/48-240Vac
24-250Vdc/48-240Vac
CT Inputs 4
VT inputs 0 1
Number of Digital input (max) 5 6
Number of Digital Output (max) 6
Number of RTDs (optional) 6 10
Protection Elements Check synchronising (25)*
Directional power (32)
Undercurret (37)
Negative sequence overcurrent (46)
Broken conductor (46BC)
Negative sequence over voltage (47)
Thermal overload (49)
Ground fault (50N/51N)
3 Phase overcurrent (50/51P)
Circuit breaker failure (50BF)
Voltage controlled overcurrent(51V)
Over / Under voltage (59/27)
Residual over voltage (59N)
Restricted earth fault (64)
Ground fault directional (67N)
Auto-reclose (79)
Under / Over frequency (81)
Rate of change of frequency (81R)
Current transformer supervision / VT supervision (CTS/VTS)
Communication Protocol IEC60870-5-103, DNP3.0, Modbus, K-bus/Courier, IEC61850
