넥스포는 Schneider Electric 다양한 IED 제품을 통해 전력계통 보호 엔지니어링 솔루션을 제공합니다. Easergy MiCOM과 Vamp는 신뢰성 있는 보호기능과 고급 멀티 기능을 탑재하여 플랜트의 설비들을 안정적으로 보호하고 모니터링함으로써 고객가치 증진에 기여합니다.

P12X P12Y P13X P14X P22X P24X P34X P43X P44X P44Y P521 P53X P54X P59X P63X P64X P72X P74X P746 P79X P821 P841 P849 P92X P3Advanced P3Standard VAMP50_52 VAMP55 VAMP57 VAMP59 VAMP210 VAMP230 VAMP259 VAMP265 VAMP265M VAMP300G VAMP300F VAMP300T

Image Description

description

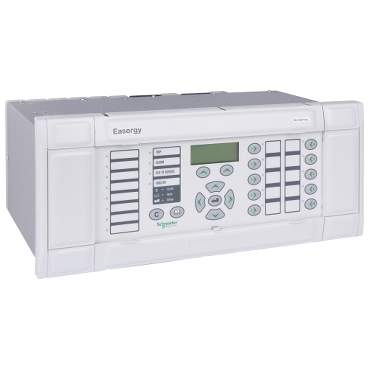

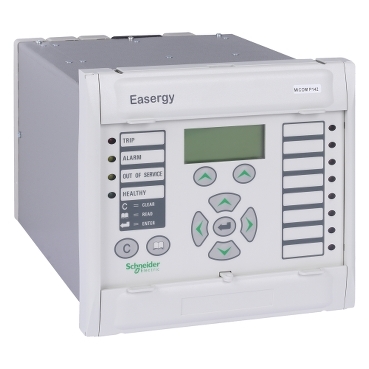

MiCOM P14x
Feeder Overcurrent & Earth Fault Protection Relays
Overcurrent, Earth Fault and complete feeder power system protection, control and monitoring including advanced communication and integrated functions dedicated to feeders.

MiCOM P141 : Feeder management relay
MiCOM P142 : Feeder management with integrated Autoreclose
MiCOM P143 : Feeder management, integrated Autoreclose and Check Synchronism
MiCOM P145 : Feeder management, Autoreclose, Check Synchronism and Enhanced operator control functions

Specification

Description Specification
Type (Model Name) P132 P139
Auxiliary Power Supply 24-60Vdc
60-250Vdc/100-230Vac
CT Inputs 4
VT inputs 4 or 5
Number of Digital input (max) 70
Number of Digital Output (max) 32 28
Number of Analog Input (optional) 1
Number of Analog Output (optional) 2
Number of RTDs (optional) 10
Protection Elements Check synchronising (25)
Directional power (32)
Voltage controlled direct. reactive power(32V)
Undercurret (37)
Negative sequence overcurrent (46)
Broken conductor (46BC)
Negative sequence over voltage (47)
Thermal overload (49)
Ground fault (50/51N)
3 Phase overcurrent (50/51P)
Circuit breaker failure (50BF)
Motor Protection (48/51LR/66)
Voltage controlled overcurrent(51V)
Over / Under voltage (59/27)
Residual over voltage (59N)
Restricted earth fault (64)
Ground fault directional (67N)
Auto-reclose (79)
Under / Over frequency (81)
Rate of change of frequency (81R)
Current transformer supervision / VT supervision (CTS/VTS)
Communication Protocol IEC60870-5-103, IEC 60870-5-101, DNP3.0, Modbus and Courier, IEC61850
