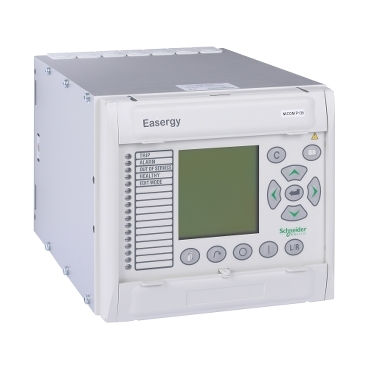

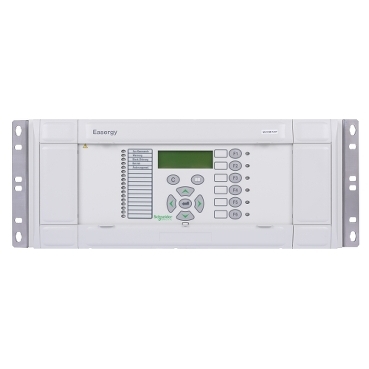

MiCOM P13x
Feeder Management Protection and Bay Control Devices
Easergy MiCOM P13x is a range of feeder management and one-box solutions for flexible and comprehensive protection and control of feeders.


항목 사양
  P132 P139
제어전원 (Power Supply) 24-60Vdc
CT Inputs 4
VT inputs 4 or 5
Number of Digital input (max) 70
Number of Digital Output (max) 32 28
Number of Analog Input (optional) 1
Number of Analog Output (optional) 2
Number of RTDs (optional) 10
보호기능 Check synchronising (25)
Directional power (32)
Voltage controlled direct. reactive power(32V)
Undercurret (37)
Negative sequence overcurrent (46)
Broken conductor (46BC)
Negative sequence over voltage (47)
Thermal overload (49)
Ground fault (50/51N)
3 Phase overcurrent (50/51P)
Circuit breaker failure (50BF)
Motor Protection (48/51LR/66)
Voltage controlled overcurrent(51V)
Over / Under voltage (59/27)
Residual over voltage (59N)
Restricted earth fault (64)
Ground fault directional (67N)
Auto-reclose (79)
Under / Over frequency (81)
Rate of change of frequency (81R)
Current transformer supervision / VT supervision (CTS/VTS)
통신 프로토콜 (Communication Protocol) IEC60870-5-103, IEC 60870-5-101, DNP3.0, Modbus and Courier, IEC61850
Image Description
Image Description
Image Description


File Download
User Manual Volume 1 다운로드 1
User Manual Volume 2 다운로드 2
Product Catalog 다운로드
