NEXPO Products
IED PRODUCTS

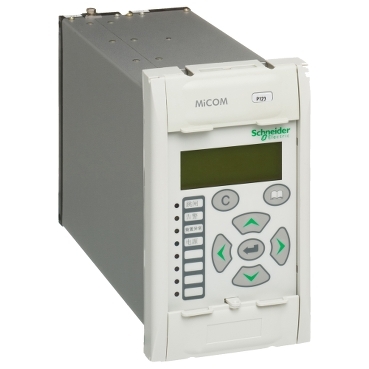

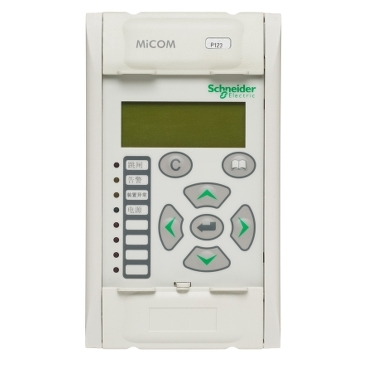

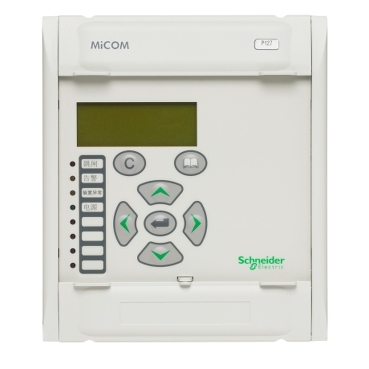

넥스포는 Schneider Electric 의 다양한 IED 제품을 통해 전력계통 보호 엔지니어링 솔루션을 제공합니다. Easergy MiCOM과 Vamp는 신뢰성 있는 보호기능과 고급 멀티 기능을 탑재하여 플랜트의 설비들을 안정적으로 보호하고 모니터링함으로써 고객가치 증진에 기여합니다.
IED PRODUCTS
description
With a 100-year tradition of excellence and innovation in flow measurement, the Foxboro by Schneider Electric brand of magnetic, vortex and Coriolis technologies and accessories offers a complete breadth of accurate, reliable and worry-free flowmeter solutions.
Specification
| Description | Specification |
|---|---|
| Type (Model Name) | VAMP 50 |
| Auxiliary Power Supply | 24Vdc 48-230Vac/dc |
| CT Inputs | 0 |
| VT inputs | 4 |
| Number of Digital input (max) | 7 |
| Number of Digital Output (max) | 6 |
| Analogue input | Option |
| Analogue Output | |
| RTD input | |
| Protection Elements | Volts/hertz overexcitation (24) Check synchronising (25) Negative sequence overvoltage (47) Circuit breaker failure (50BF) Over / Under voltage (59/27) Residual over voltage (59N) Under / Over frequency (81) Rate of change of frequency (81R) Current transformer supervision / VT supervision (CTS/VTS) |
| Communication Protocol | IEC60870-5-101, IEC60870-5-103, DNP3.0, Modbus, SPA-bus, Ethernet IP, Profibus DP, IEC61850 |
